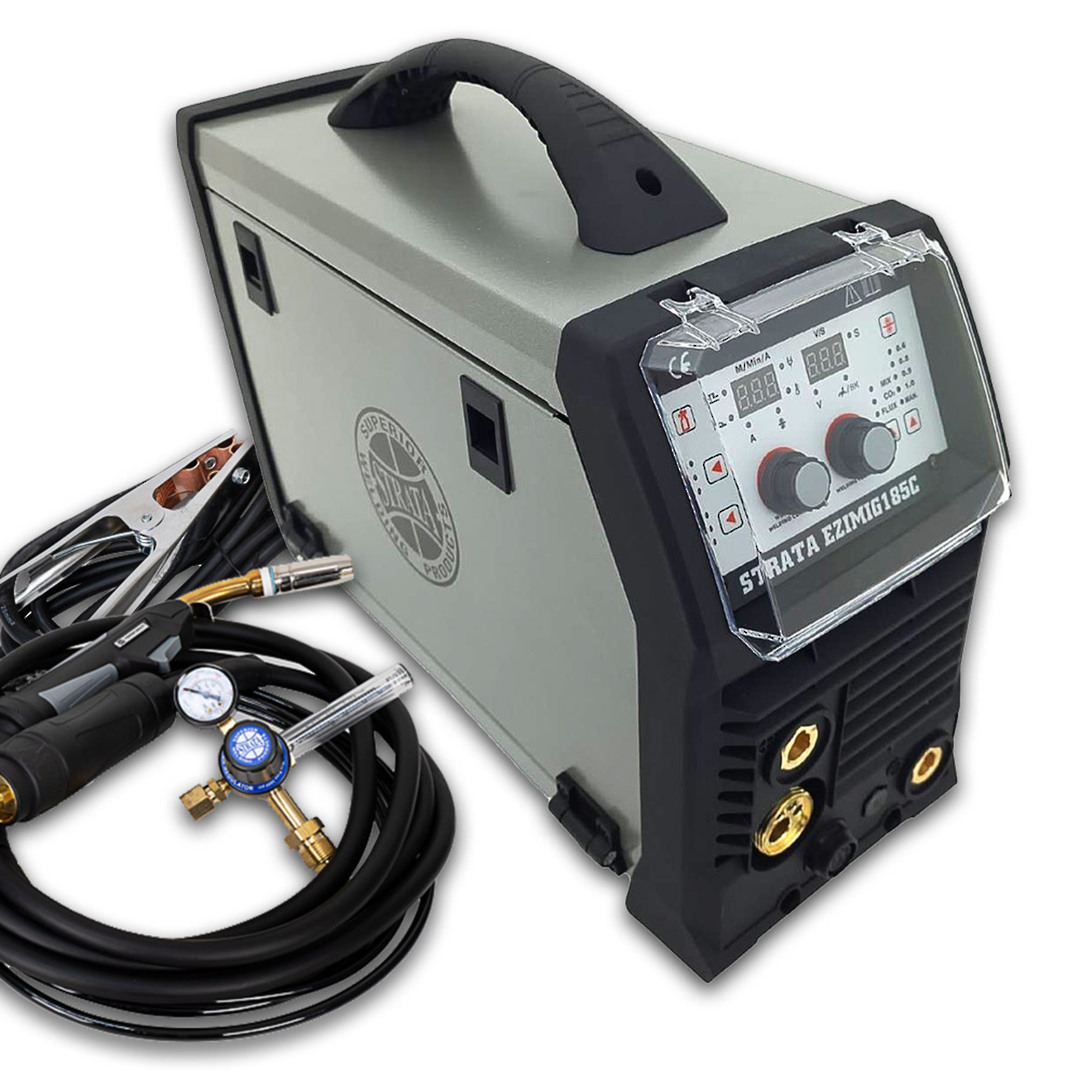

Strata EZIMIG185C Welder

$998.00 incl. GST

$867.83 $995.00 excl. GST

Save $127.17

Our Part #: WE1520 ~ Supplier Part #: EZIMIG185C

Our Part # WE1520 ~ Supplier Part #:

Category Machines, Toolbox June-August 2026

Description

Compact and versatile, the Ezimig185C is designed for the modern welder who needs both power and portability. With a maximum welding thickness of 10mm steel, this machine combines IGBT inverter technology with intuitive synergic controls for smooth, consistent results. Its lightweight design is ideal for portable applications, while advanced features like Lift TIG operation and dual digital displays make it a top choice for professional welders seeking precision and versatility.

Max Ouput (Mig) - 180A

Max Weld Thickness - 10mm Steel

Input Power Supply - 10A 230V

IGBT Inverter technology for smooth & stable welding output
Synergic MIG operation with Parameter Save/ Recall Intuitive and simple setting of controls for consistent weld results
MIG Inductance & Burnback Control for greater control for MIG welding operation
Spool Gun Connection w/ Remote Control for effective results welding with soft wires such as Aluminium and MIG brazing with bronze wires.
Lightweight & Compact Design, ideal for portable applications
Adjustable MMA Hot Start & Arc Force Functions
Industrial IP23 casing with front panel protection for great resistance to damage, moisture and corrosion
Lift TIG Welding Operation ideal for precision and aesthetically important welding jobs
Dual Digital Display Meters allow for accurate pre-setting and feedback of welding parameters & output.
2T/4T/ Spot Weld Trigger Control
Metal Chassis Wire Feeder Smooth and consistent wire feed.
Digital Microprocessor Control System for Superior & Dynamic Arc Characteristics
Extreme stress testing to 440V in production for rugged reliability.
Reversible Polarity MIG Welding Operation Suitable for gas & gasless MIG welding.
High Quality & Over Specified Electronic Components for Superior Durability & Reliability
Intelligent Protection System with temperature, voltage and current sensors for increased reliability & safety
Generator Friendly - Designed to work with generator power supply and protect from power surges.
Quick connect inlet gas fitting
Includes: Binzel Style 250 MIG Torch, Earth & ARC set, Argon Regulator & CO2 Adaptor, Gas Hose with Quick Connect Fittings, Drive Roller 'V' Groove (0.6-0.8mm & 0.9-1.0mm)
